ITAB Antena Attenuation Value Calculator

---

Country of manufacture: Germany,            Date of manufacture: ____
Overall length: 17.6 cm,          Width: 4.5 cm.,           Weight: 25.2 gms.
Materials: all plastic
Cursor: 3.3 X 4.6 X 0.3 cms, plastic;      Lines: one, front only.
Scales: specialized

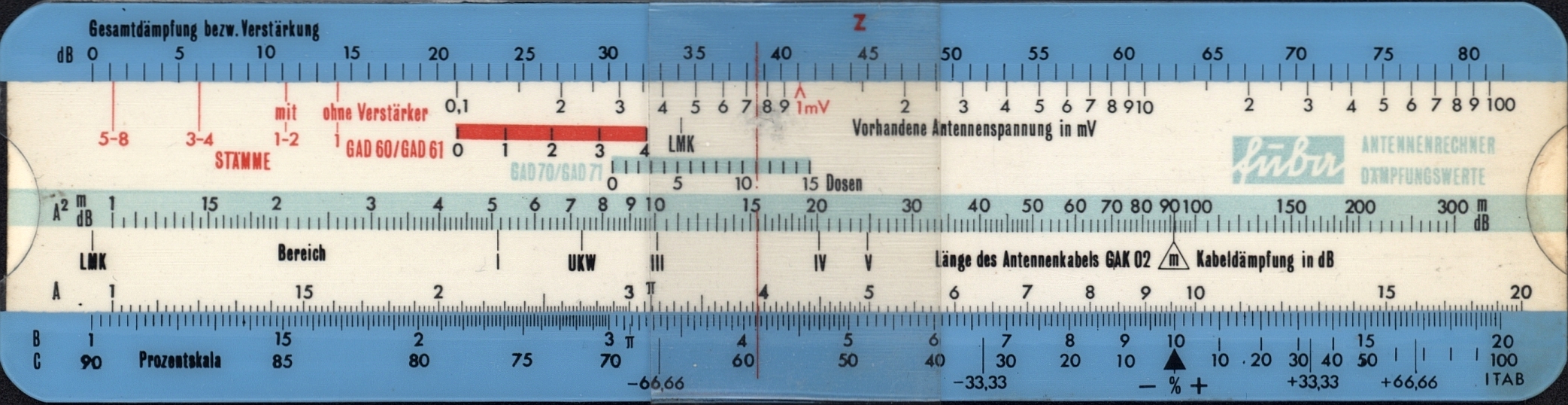

Front: Total Attenuation or Gain in dB [ Existing Antenna Voltage in mV with and without amplification, Trunks, indicators for # of trunks, cable types & lengths, A² dB, A ] B, C Percent scale

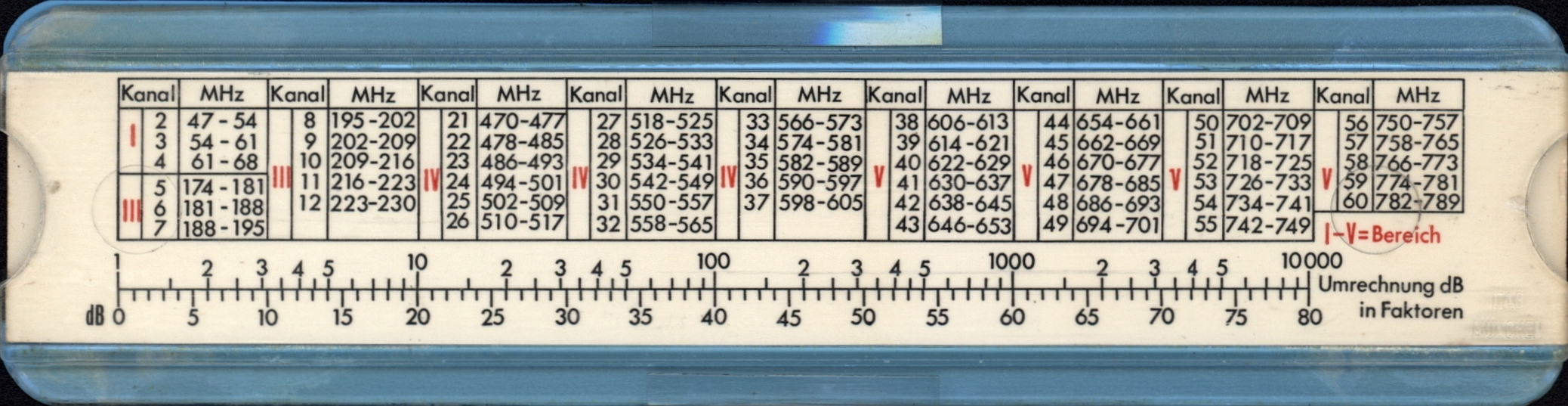

Back:Frequency table for channels, dB to Factor conversion
Condition: C5 (Normal signs of use)

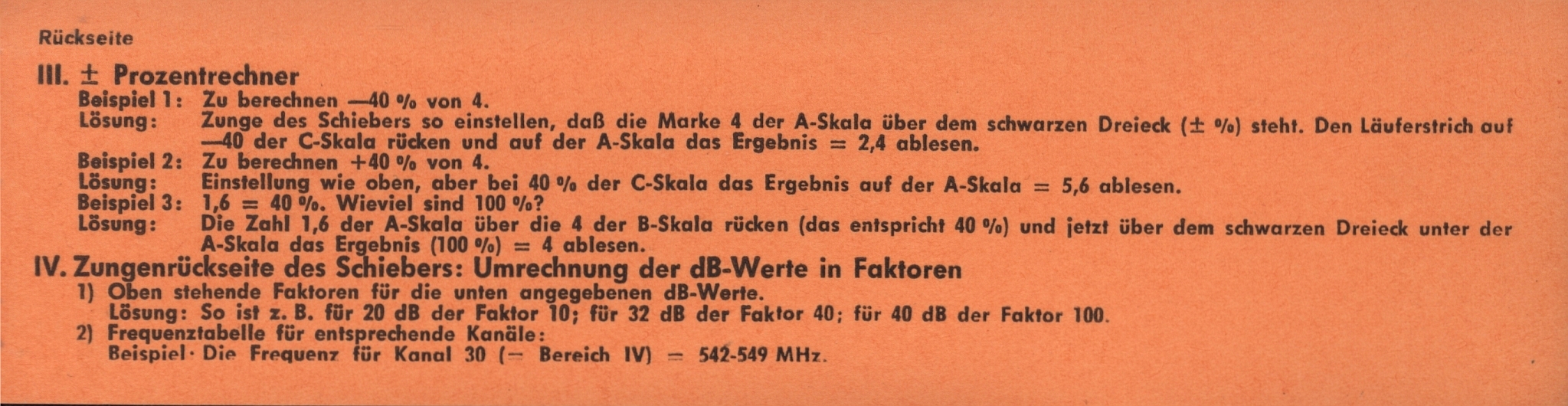

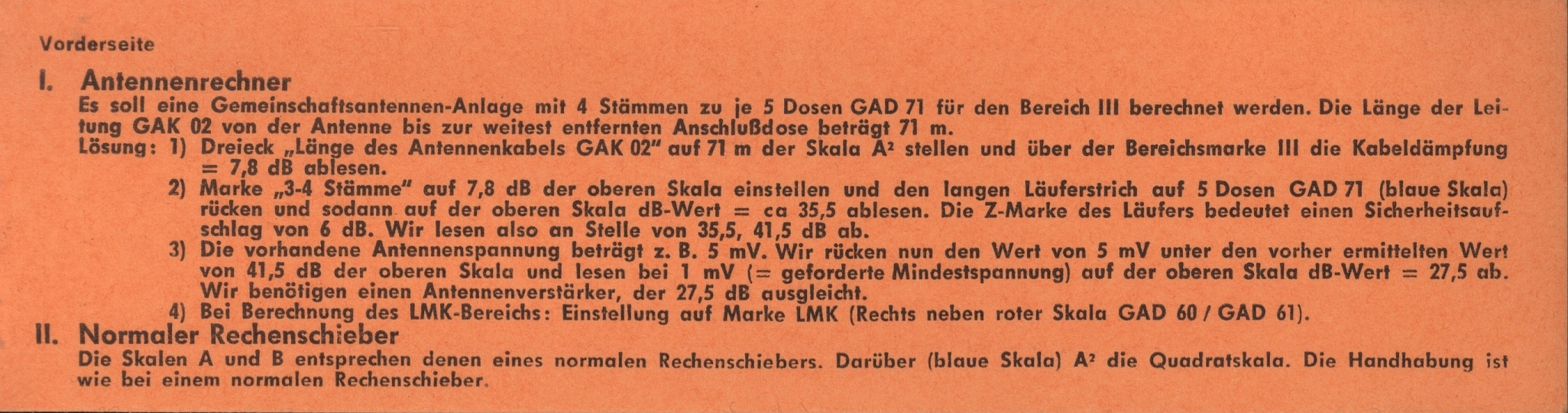

Came with: clear plastic slipcase; instruction aheet

---

---
